Classification





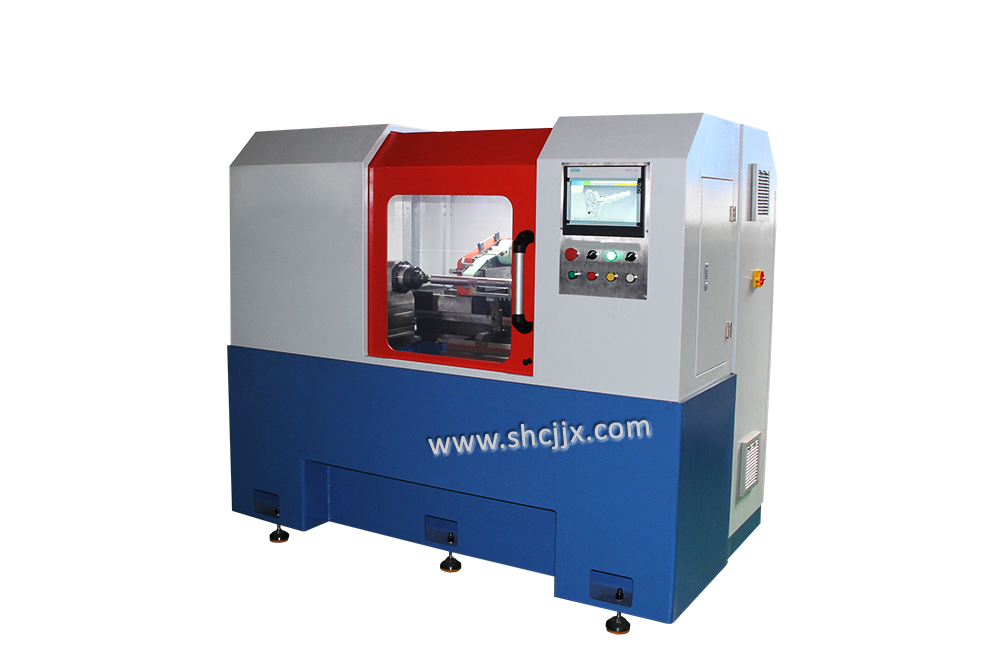

Fully automatic ultra precision machine - M01 type

Whether it is sand belt ultra precision or oil stone ultra precision, the design structure of this machine can process almost all types of shafts. The clamping system that can be used includes chucks with or without a center frame and spring clamps. As a special specification, we provide user specific machine solutions.

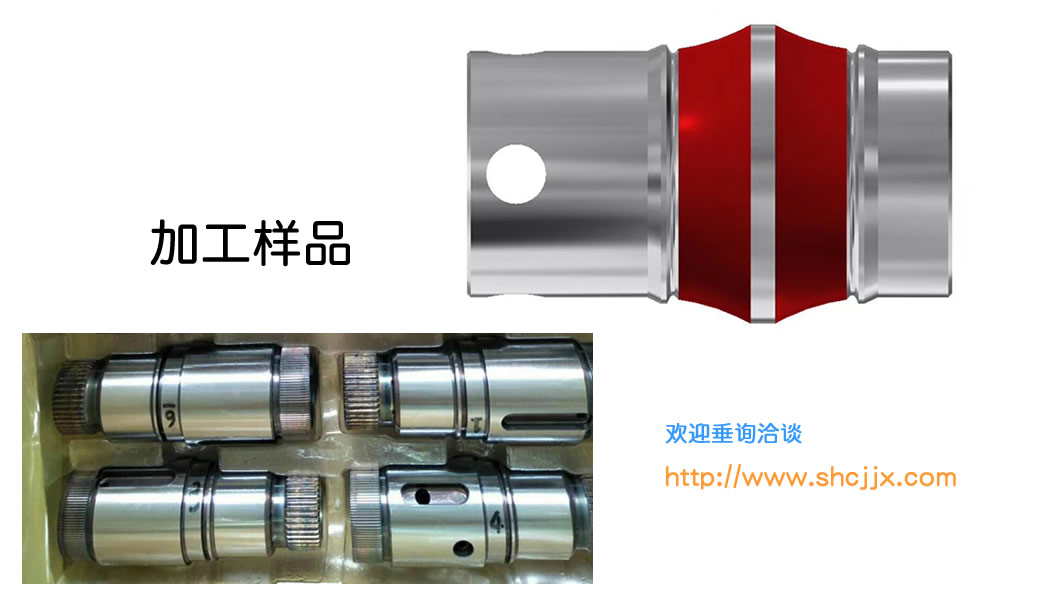

Designed for various types and sizes of axis classes. It can process workpieces of various materials (such as steel grades, cast iron, hard alloys, ceramics), and supports the combination of different processes such as oilstone ultra precision, sand belt ultra precision, CAB and flat ultra precision, and brush type deburring. It can be operated manually, fully automatic, or in combination with a rhythm belt, door type, or robotic arm for feeding.

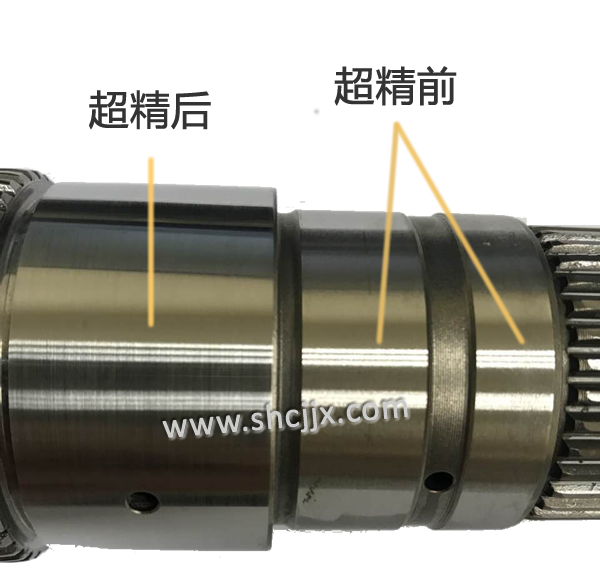

Both in terms of appearance and performance, our equipment can help customers achieve ideal surface accuracy requirements. After ultra precision machining, the surface can minimize friction, improve performance, and extend the service life of components.

021-37621387

Online Message

Product Details

【產(chǎn)品圖片】

【 Product Introduction 】

We customize modular, economical, and versatile ultra precision professional machine tools based on customer needs.
Imported Siemens programmable controller and touch screen, fully digital AC servo control system for grinding feed
Imported linear guide rail and ball screw assembly
Imported adaptive control system and anti-collision control system
The grinding wheel spindle adopts a precision bearing mechanical structure with an air sealed unit, and adopts an imported frequency converter for speed regulation
The workpiece shaft is driven by a variable frequency variable speed motor and a precision bearing unit
Using servo transmission, according to the differential between the trimmer and the trimming differential compensation plate, the shape of the generatrix required for shaping the grinding wheel is trimmed to produce the corresponding convex shape of the workpiece raceway generatrix

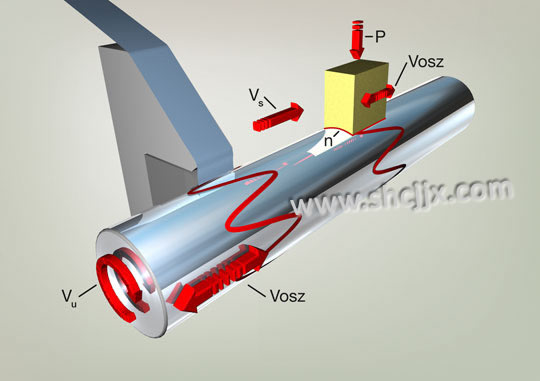

Processing principle:

【 Technical Parameter 】
Number of workstations 1-5 (customizable) Processing units according to requirements Maximum workpiece length 500 mm, workpiece diameter 200mm CNC axis (pcs) 0-5 (customizable) Spindle speed (rpm) 0-1500 Swing speed (rpm) 0-1400

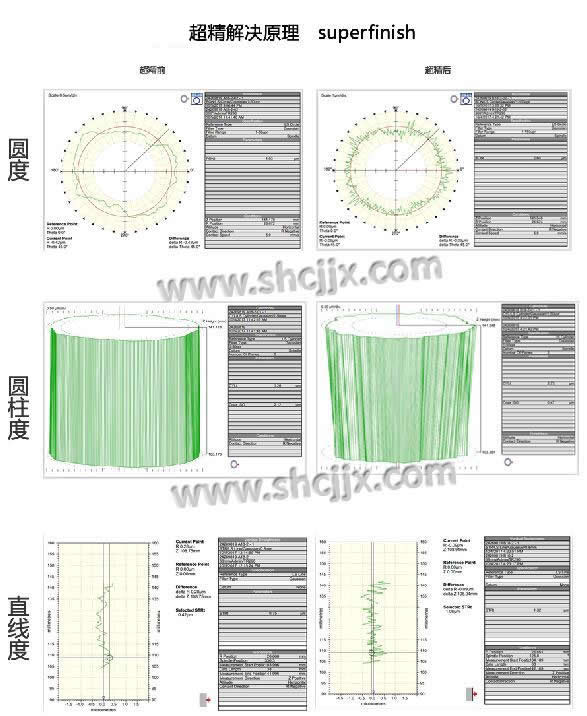

surface quality

? Roundness

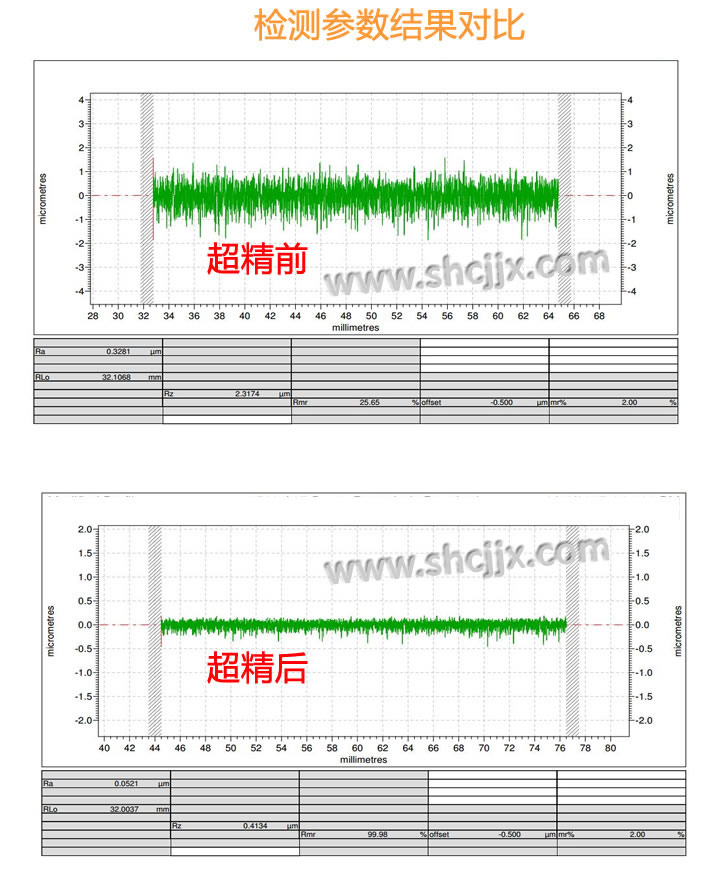

? Roughness

? Shape

? Straightness

? Cylindricity

? Parallelism

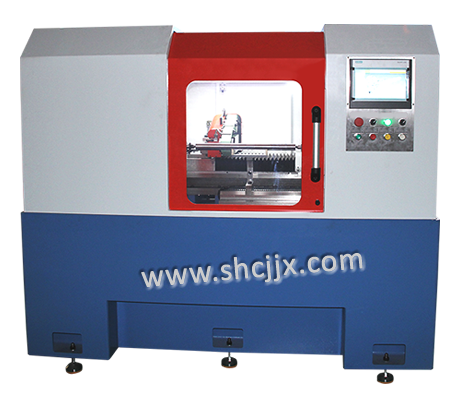

Host composition:

Bed body

Cover, sliding door, and loading and unloading port

Spindle driven by servo motor, manually adjusting position changes

Tailstock, manual position adjustable

Spindle drive, continuously variable and adjustable

Having a complete electrical and pneumatic system

Control system Siemens 1200

Electrical cabinet

1 sandbelt polishing unit, including vibration drive, vibration monitoring, and sandbelt fracture detection and control system

1 manually adjustable angle oilstone ultra precision unit, including vibration drive and control, oilstone depletion monitoring, and fracture monitoring.

Power requirement: 380V

Processing material: precision grinding with oilstone.

Service: Fast and flexible customer service, high reliability, 24-hour service.
